Storefront Systems
PRL offers aluminum storefronts and designer door series for commercial and residential use, combining durability, energy efficiency, and high performance with sleek aesthetics.
Aluminum Storefront
PRL’s Aluminum Storefront Series offers high-performance, durable, and energy-efficient systems for commercial and residential use. Available in center-set and forward-set glass configurations, they support insulating and monolithic glass and can be customized with in-house extrusion.
- Aesthetic Appeal: The design of a center glazed system often contributes to a modern and streamlined aesthetic, enhancing the overall look of the storefront and the building.
- Thermal Performance: Many center glazed systems are engineered to provide excellent thermal performance, contributing to energy efficiency and climate control within the building.
- Glass Pocket Width: The system typically includes a designated glass pocket width, ensuring secure and proper placement of the glass panels within the framing.
- Customization: The flexibility in design and the availability of various extrusions and accessories allow for customization, ensuring that the system meets specific project requirements.
- Energy Efficiency: The thermal performance of the center glazed system contributes to energy efficiency, potentially reducing heating and cooling costs.
- Contemporary Design: The modern and sleek appearance of the center glazed system aligns well with contemporary architectural trends, making it a popular choice for modern buildings.
FINISHES ALUMINUM
BRONZE
ANODIZE
CLEAR
ANODIZE
Series
The Aluminum Storefront Series by PRL presents two distinct glass configurations: the conventional center-set glass and the forward-set glass, designed to accommodate both insulating glass and monolithic annealed/tempered glass. Our stock of aluminum storefronts comes in standard lengths of 24 feet, and we have the capability to create customized lengths, with in-house extrusion capabilities to meet your specific requirements.

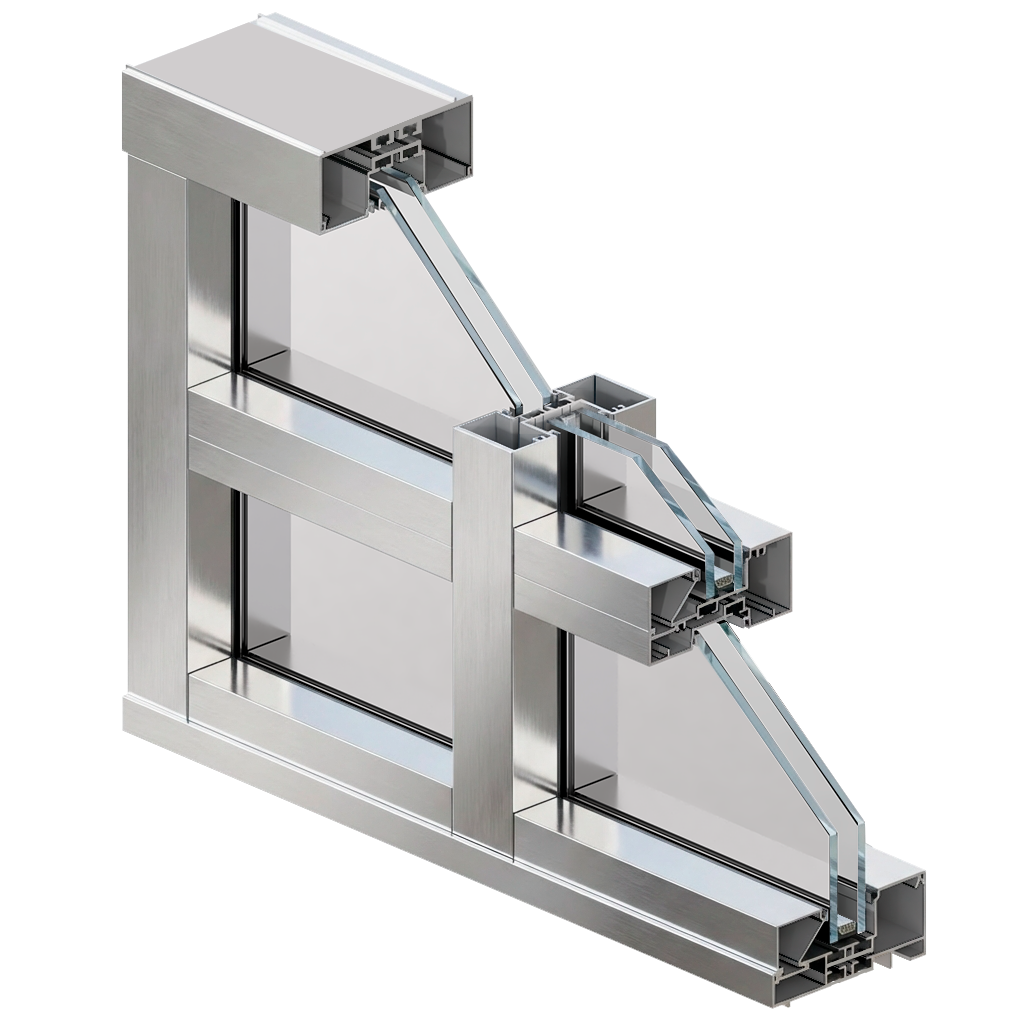

250-Series (2 X 4-1/2 Center Glaze For 1 Glazing)
The 250 presents itself as a versatile and budget-friendly center-glazed system, purpose-built to seamlessly incorporate 1-inch insulating glass. It boasts a comprehensive selection of extrusions and accessories, meticulously designed to accommodate a wide range of job conditions, ensuring adaptability and efficiency. The 250 glazing system is available in 2 x 4-1/2 sections, featuring a 1-1/4 glass pocket width. Notably, entrance doors can be easily customized through the use of a dedicated filler insert tailored specifically for this advanced glazing system. This design flexibility, combined with its economic advantages, makes the 250 an ideal choice for various architectural applications.
- INSTALLATION
- TEST STRUCTURAL
- TEST IMPACT
HANDLING, STORAGE AND PROTECTION OF ALUMINUM
The following precautions are recommended to protect the material against damage.
Following these precautions will help ensure early acceptance of your products and workmanship.
The mockup specimen for testing was a flat wall specimen, nominal one (1) story high, consisting of a 4 1/2″ deep, center glazed, aluminum window wall system, measuring approx, 10´ wide by 10´ high (3 lites wide by 2 lites high).
Compliance Statement: Results obtained are tested values and were secured by using the designated test method(s). The samples tested met the performance requeriments set forth in the referenced test procedures for a +1676/-2873 Pa (+35/-60psf) Design Pressure with missile impacts corresponding to Missile Level D and Wind Zone 3 for a basic protection rating.

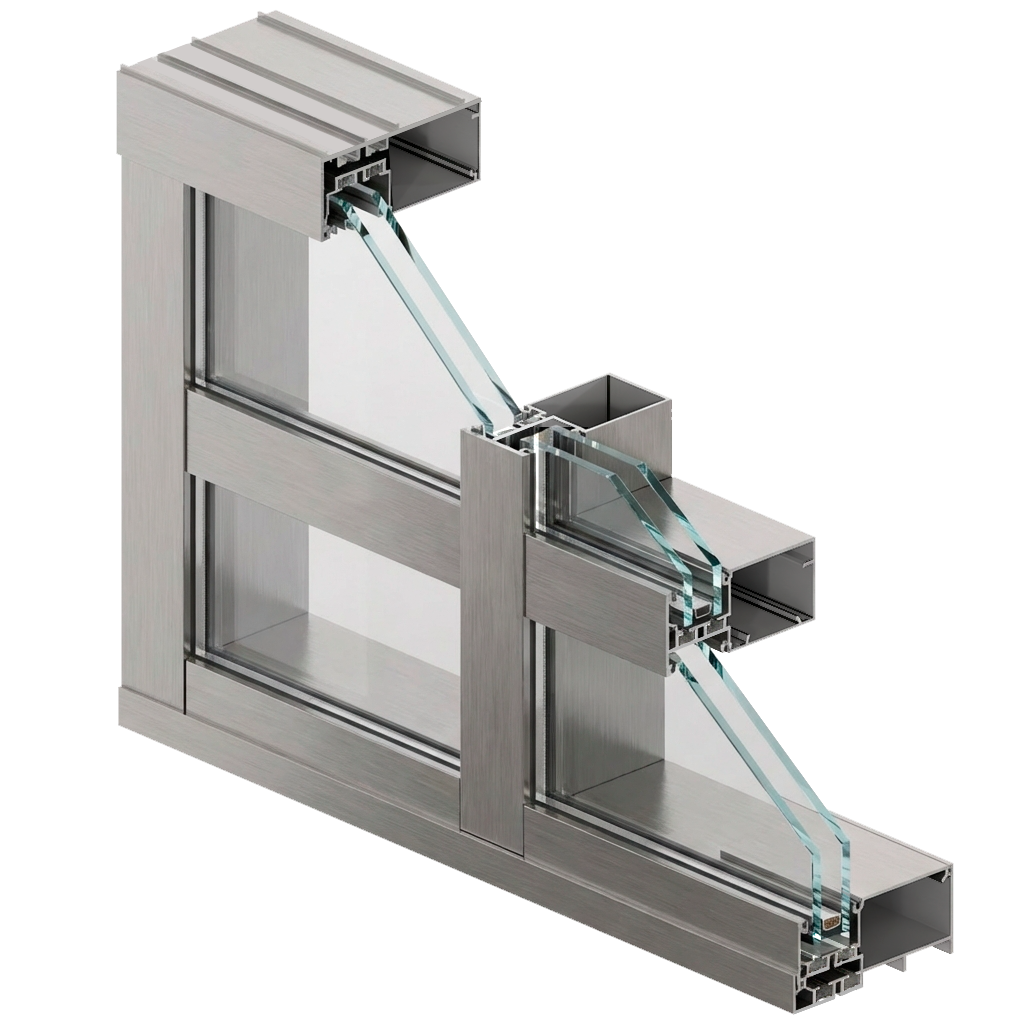

251 DT-Series (2” x 4 1/2” Section Offset) Thermal & Non Thermal
PRL Glass and Aluminum’s 251DT storefront systems are engineered for optimal energy efficiency, featuring a thermally broken aluminum frame that mitigates heat transfer. This design ensures interior comfort and energy efficiency, regardless of external temperatures. Our diverse range of handles, finishes, and extensive glass options allows for customization, enabling you to create a unique and personalized storefront. These commercial-grade entrance systems are well-suited for both exterior and interior applications, delivering exceptional performance while contributing to energy cost savings. Explore the offerings at PRL Glass and Aluminum today to craft an inviting entryway that mirrors the distinctive style of your business!
- TEST REPORT
- THERMAL REPORT
- For glass information, refer to pg# 2 (glass Matrix) this
- This thermally broken aluminum (anodized), offset glazed double thermal strut storefront (curtain wall) system consists of 5 cross-sections.
Frame weather-strip: silicone gasket full perimeter, facing exterior & interior. Sash weather-strip: NoneThermal break material is Urethane- thermal break per NFRC 101-2020.
Compliance Statement: Results obtained are tested values and were secured by using the designated test method(s). The samples tested met the performance requeriments set forth in the referenced test procedures for a +1676/-2873 Pa (+35/-60psf) Design Pressure with missile impacts corresponding to Missile Level D and Wind Zone 3 for a basic protection rating.
400-Series (1 3/4 X 4 Center Glaze For 1/4 Glazing):
The 400 Series (1-3/4 x 4 system) stands out as a cost-effective system meticulously designed to meet industry-standard performance requirements efficiently. Featuring components designed for interchangeability, this series is versatile, suitable for both exterior and interior applications. It represents an industry-standard center-glazed system, seamlessly accommodating all standard entrance door hardware and door types, including those with single or double-action door hardware. This system is capable of receiving ¼-inch glass within a ½-inch glass pocket width, providing flexibility for both shop and field fabrication. Additionally, the extrusions can be reinforced to meet more demanding performance requirements, ensuring durability and adherence to rigorous standards.
- INSTALLATION
- TEST STRUCTURAL
- TEST IMPACT
HANDLING, STORAGE AND PROTECTION OF ALUMINUM
The following precautions are recommended to protect the material against damage.
Following these precautions will help ensure early acceptance of your products and workmanship.
The mockup specimen for testing was a flat wall specimen, nominal one (1) story high, consisting of a 4 1/2″ deep, offset glazed, aluminum window wall system, measuring approx, 10´ wide by 10´ high (3 lites wide by 2 lites high). The system was glazed.
Compliance Statement: Results obtained are tested values and were secured by using the designated test method(s). The samples tested met the performance requeriments set forth in the referenced test procedures for a +1676/-2873 Pa (+35/-60psf) Design Pressure with missile impacts corresponding to Missile Level D and Wind Zone 3 for a basic protection rating.
450-Series (1-3/4 x 4-1/2 Center Glaze For 1/4 Glazing):
Crafted to surpass elevated performance benchmarks, PRL’s 450 Aluminum Storefront system is a versatile and optimal choice for exterior applications. Functioning as an industry-standard center-glazed system, all components are designed for interchangeability, making them equally well-suited for both interior and exterior applications. The 450 Series, with dimensions of 1 ¾” x 4 ½”, is a robust glazing system capable of accommodating ¼” glass within a ½” glass pocket width. Whether shop or field fabricated, this series offers flexibility in fabrication methods. Moreover, extrusions can be reinforced to meet more stringent performance requirements. Compatible with all standard entrance door hardware and door types, including single or double-action door hardware, this aluminum storefront series ensures comprehensive functionality.
- INSTALLATION
- TEST STRUCTURAL
- TEST IMPACT
HANDLING, STORAGE AND PROTECTION OF ALUMINUM
The following precautions are recommended to protect the material against damage.
Following these precautions will help ensure early acceptance of your products and workmanship.
The mockup specimen for testing was a flat wall specimen, nominal one (1) story high, consisting of a 4 1/2″ deep, offset glazed, aluminum window wall system, measuring approx, 10´ wide by 10´ high (3 lites wide by 2 lites high). The system was glazed.
Compliance Statement: Results obtained are tested values and were secured by using the designated test method(s). The samples tested met the performance requeriments set forth in the referenced test procedures for a +1676/-2873 Pa (+35/-60psf) Design Pressure with missile impacts corresponding to Missile Level D and Wind Zone 3 for a basic protection rating.
Product Overview
PRL IS PROUD TO OFFER OUR ALUMINUM STOREFRONTS AND DESIGNER DOOR SERIES THAT ARE DESIGNED FOR EXTERIOR AND INTERIOR COMMERCIAL OR RESIDENTIAL USE. OUR ALUMINUM AND GLASS WINDOW WALL STOREFRONT SYSTEMS BOOST HIGH PERFORMANCE, DURABILITY AND EXCELLENT ENERGY EFFICIENCY WITHOUT COMPROMISING AESTHETICS.
The Aluminum Storefront Series by PRL presents two distinct glass configurations: the conventional center-set glass and the forward-set glass, designed to accommodate both insulating glass and monolithic annealed/tempered glass. Our stock of aluminum storefronts comes in standard lengths of 24 feet, and we have the capability to create customized lengths, with in-house extrusion capabilities to meet your specific requirements.
Just as a skilled tradesperson relies on the right tools for a job, specifiers and installers need access to a comprehensive selection of storefront stock lengths. Our vast array of framing materials not only ensures durability but also guarantees uncompromised quality, making them perfect for various institutions and homes. Crafted to accommodate a diverse range of storefront specifications, our stock lengths are tailored to meet your ingress requirements.
Manufactured in our state-of-the-art facility, our storefront stock lengths come in both standard and custom sizes, catering to virtually any architectural specification. Extruded from high-quality 6063-T5 aluminum alloy, these materials are available in a variety of popular finishes, seamlessly blending with your décor, whether for an interior or exterior storefront.
