Accordion Bifold Doors
Our Bi-Fold system provides super sound control, excellent air and water protection, ease in operation and is hurricane impact rated. Added to this outstanding product is the advantage of production times that are the fastest in the industry!
Configurations Options
PRL Accordion BiFold doors can be used in a wide range of applications, configurations and functionality requeriments. THe system can be configured in multiple ways, 8-panels on each side, up to 16-panels per systems.
- Maximum Pnael Weitght: 220 lbs. each panel
- Maximun Panel Widht: 42
- Maximum Panel Widht: 24"
- Maximum Panel Width: 120"
Developed with precision, our doors include a durable top hung roller system, a smooth sliding floir guide, sturdy locking hardaware and an innovate seal design that has resulted in an exceptional door system with a large variety of available in-lin/multiple panel configurations.
GLASS TYPES
HARDWARE FINISHES
Styles
Multi-point Door Lock
- Up to three Lock Point deadbolt
- Deadbolt, upward/downward shootbolt
- Lever Lock Set/Contemporary Handle Style
Twin Bolt Lock

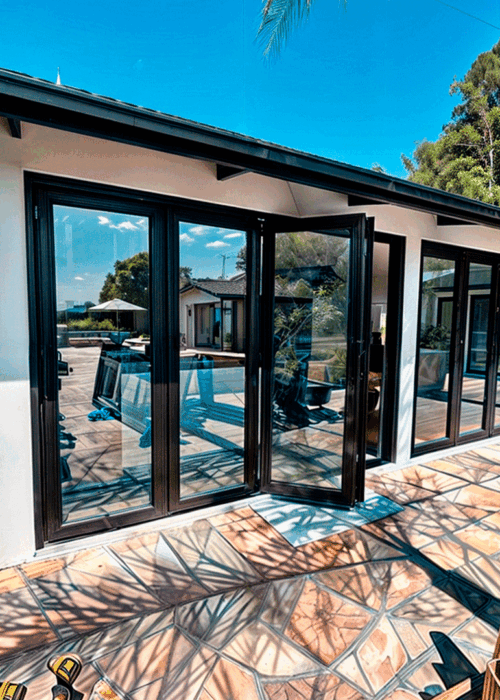

PRL’s Exterior Aluminum Accordion Sliding Bifold Doors system offers a versatile, durable, space saving option for commercial and residential entrances. With this system that combines PRL’s exterior, sliding, aluminum frame bi-fold door panels with your choice of glass, you can create a stunning and practical entryway that effortlessly slides into a neatly stacked side orientation creating an unhindered, completely open, breathtaking entrance.
In a Single Direction
Extrusions:
Aluminum 6063-T5
Hardware:
Stainless Steel Components.
Lever Lock Sets:
A Set-316 Stainless Steel, B Set-Powder Coat over Brass.
Multi.point Door Locks:
Faceplate, latch and hooks.
- Maximum Panel Weight:220 lbs each panel
- Minimum Panel Width: 24"
- Maximum Panel Width: 42"
- Maximum Panel Height: 120".
- Door Thickness: 2 1/2"
- Door Thickness: 2 1/2"
PRL’s Accordion Bi-Fold doors satisfy a wide spectrum of archictectural design and functionality requierements. Accordion are flexible, offered as a top hung system with a floor guide and provide reliable weather protection with an innovative seal system.
- 2"H x 4 3/4"W Head Track

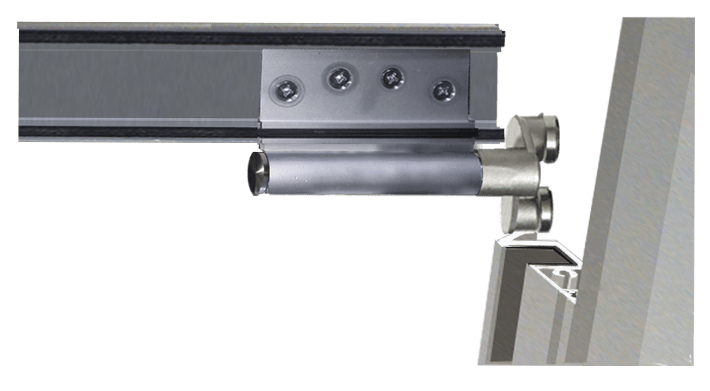

- Top Hung Roller
- 3 1/2"H x 2 1/2"W Top Thermal Break & Single Glass Stop Rails
- Integral Weather Seal Interloock System
- High Performance 1" IG Glazing
- Perimeter Weatherstripping
- Optional 10"H x 2 1/""W Bottom Thermal Break & Single Glass Stop Rails
- 3 1/2"H x 2 1/2" W Vertical Thermal Break/Single Glass Stop Stiles

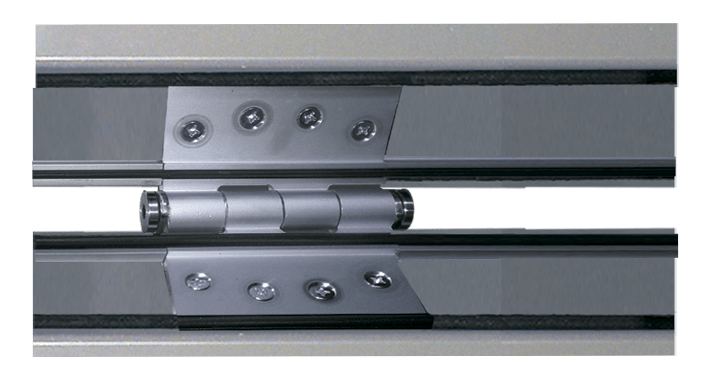

- PRL Hinge unibody design/integral weatherstripping
- Integral Weather Seal Interloock System
- High Performance 1" IG Glazing
- Perimeter Weatherstripping
Accordion Bifold Doors Overview
PRL’s Exterior Aluminum Accordion Sliding Bifold Doors system offers a versatile, durable, space saving option for commercial and residential entrances. With this system that combines PRL’s exterior, sliding, aluminum frame bi-fold door panels with your choice of glass, you can create a stunning and practical entryway that effortlessly slides into a neatly stacked side orientation creating an unhindered, completely open, breathtaking entrance.
Available in standard and custom configurations, our exterior accordion sliding bifold aluminum and glass doors can accommodate a wide variety of applications, configurations and functionality requirements.
Great for energy efficiency, safety and security, PRL provides options to give you peace of mind for your exterior sliding bi-fold aluminum and glass doors. We offer thermally broken doors and frames, 1” dual pane and 1 5/16” triple pane insulated glass, tempered/laminated insulated glass and impact rated laminated glass with SentryGlass Plus (SGP) interlayer.
At PRL, we offer an unlimited selection of glass options for our Exterior Aluminum Accordion Sliding Bifold Door systems and an impressive selection of frame and door panel finishes. Choose from clear or bronze anodized, white powder coat, Kynar finish, dual tone, wood grain, standard mill finish, or a custom finish to create an extraordinary aluminum and glass sliding door entrance for your home, patio or business.

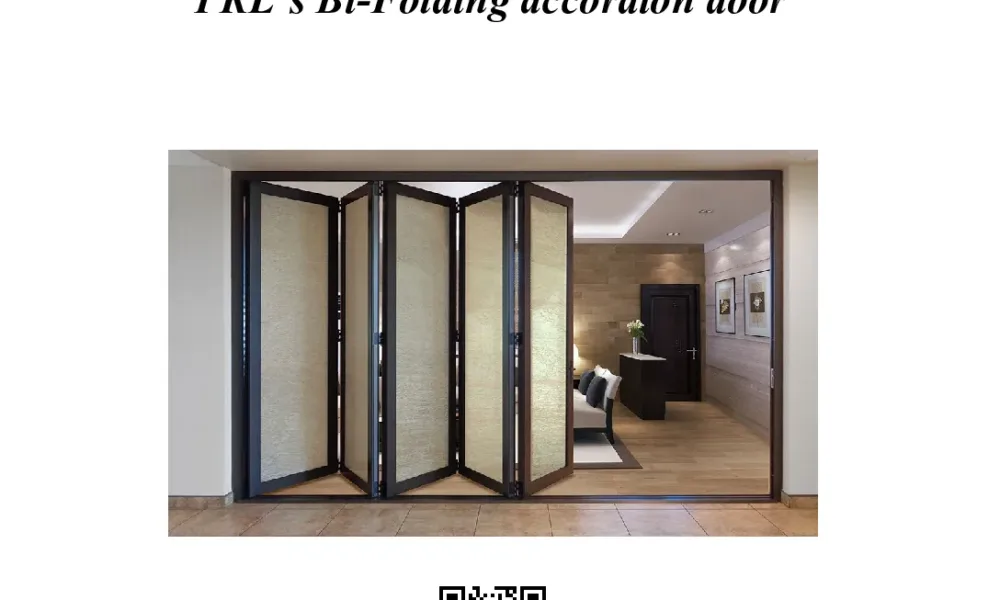

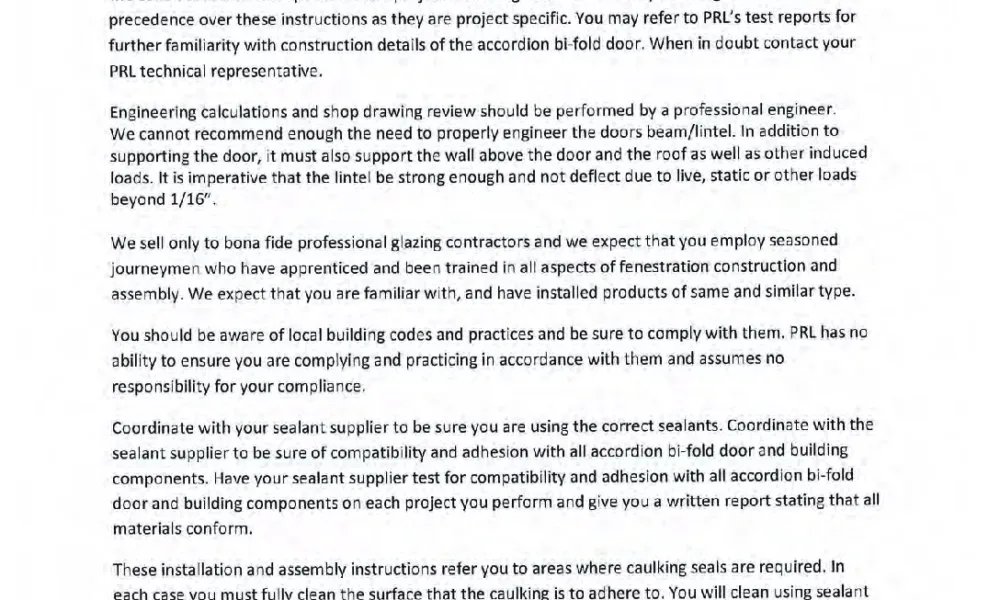

| Image | Title | Type | Size | Link |
|---|---|---|---|---|
|
|
2 MB
|
|||
|
|
2 MB
|
|||
|
|
pdf
|
|||
|
|
pdf
|
View all the documents about Entrance Hardware
LEARN MORE ABOUT ACCORDION BIFOLD
PRL Bi-Fold Bottom System
Introducing PRL Bi-Fold Bottom System, an aluminum system designed for folding doors, ideal for both domestic and commercial applications. This system combines advanced technology, modern design and exceptional functionality to transform any space.
PRL BFB System is the perfect solution for those looking for functionality, design and technology in a product. Consult with our technical team to design the ideal folding door for your space and make your project extraordinary!
————
Our Bi-Fold Bottom System has the advantages that have made PRL one of the best aluminum and glass providers: better energy efficiency, safety and architectural quality.
We also offer customization capabilities with a large selection of glass options to complement your new system.
Why choose PRL BFB SYSTEM
Our new Bi-Fold Bottom system has some important advantages for your next project.
- Versatility and customization: configure the doors according to your needs, with options to open
- inwards or outwards, low-profile sills and adjustable jambs that guarantee a perfect fit.
- Advanced glazing: compatible with double and triple glazing, maximizing thermal and acoustic insulation.
- Thermal efficiency: achieve U-values between 1.4 ~ 1.7 [W/(m².K)] thanks to innovative materials and high quality glass.
- Customized finishes: choose from a wide range of colors and sheens to match the style of your project.
- Multi-point locks and elegant handles with five standard finishes.
- Advanced security options for high-rise doors, certified to PAS24:2012.
- Weatherstripping and perimeter gasketing system designed to protect against the elements.
- Strength and ease of use, even in configurations of up to 7 panels.
EXTRUSION IDENTIFICATION
